U20A 31,000N Linear Actuator for Solar Tracking Systems
31,000N Push & Pull · 24V DC · Up to 110,000N Static Load
The TOMUU U20A is a heavy-load linear actuator developed for solar tracking systems requiring strong push and pull capability and controlled linear movement.
This configuration provides a rated load of 31,000N in both push and pull directions, with a maximum static load of up to 110,000N.
Two rated speed configurations are available to support different tracker structures and operating requirements.
Key Features
31,000N Push & Pull Load
110,000N Max. Static Load*
24V DC Rated Voltage
10% Duty Cycle
*Maximum static load varies according to stroke.
Technical Specifications
| Parameter | Specification |
| Application | Solar Tracking System |
| Rated Voltage | 24V DC |
| Rated Load | 31,000N Push & Pull |
| Max. Static Load | Up to 110,000N* |
| Duty Cycle | 10% |
| Ambient Temperature | -40°C to +65°C |
| Minimum Installation Dimension | Stroke + 320mm ±5mm |
| Protection | IP65 Standard / IP54 or IP66 Optional |
| Feedback | None Standard |
*Maximum static load varies according to stroke. For stroke lengths above 500mm, additional overlap and installation distance may be required.
Load & Speed Configurations
U20A provides two rated speed configurations while maintaining the same 31,000N push and pull load.
| Code | Voltage | Push Load | Pull Load | Rated Speed | Rated Current |
| A | 24V DC | 31,000N | 31,000N | 0.55mm/s | 5A |
| B | 24V DC | 31,000N | 31,000N | 1.1mm/s | 7.5A |

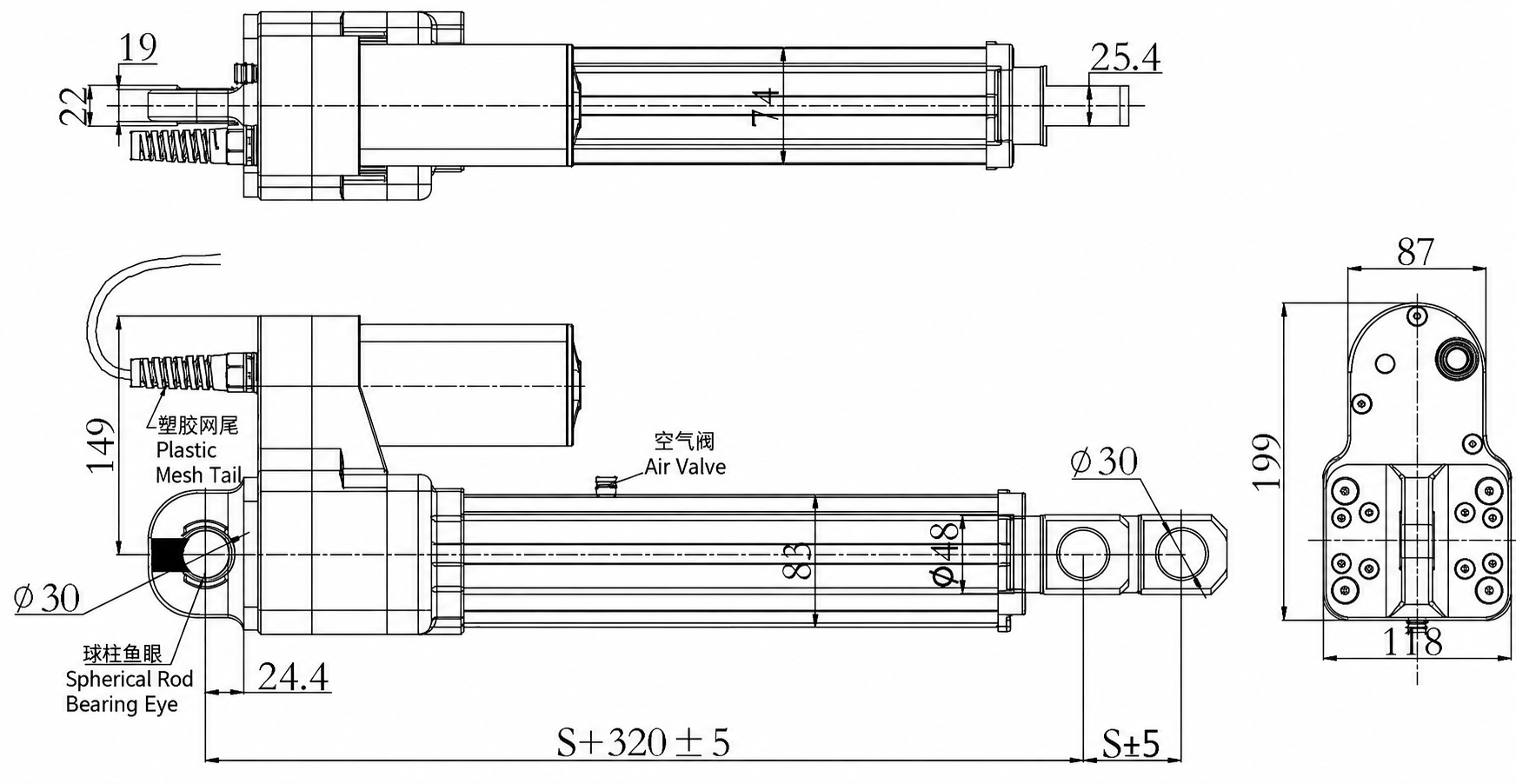

Dimensions & Installation
The standard minimum installation dimension is Stroke + 320mm ±5mm.
For stroke lengths above 500mm, the overlap distance and initial installation dimension may need to be increased according to the actuator configuration.
Designed for Solar Tracking Systems
U20A was developed specifically for solar tracking applications where high load capability and stable low-speed movement are required.
The 31,000N push and pull capacity provides a strong drive option for tracker structures, while the two rated speed configurations allow the actuator to be selected according to different project and structural requirements.
With a 24V DC power supply, 10% duty cycle and operating temperature range from -40°C to +65°C, U20A is designed for long-term outdoor solar tracker operation.
Project Applications
TOMUU linear actuators are used in solar tracking projects worldwide, supporting reliable movement and positioning of tracker structures.
Why TOMUU for Solar Projects?
57GW+
Cumulative Solar Project Applications Worldwide
Since 2017
Solar Actuator Experience
1,000 pcs/day
Solar Actuator Line Capacity

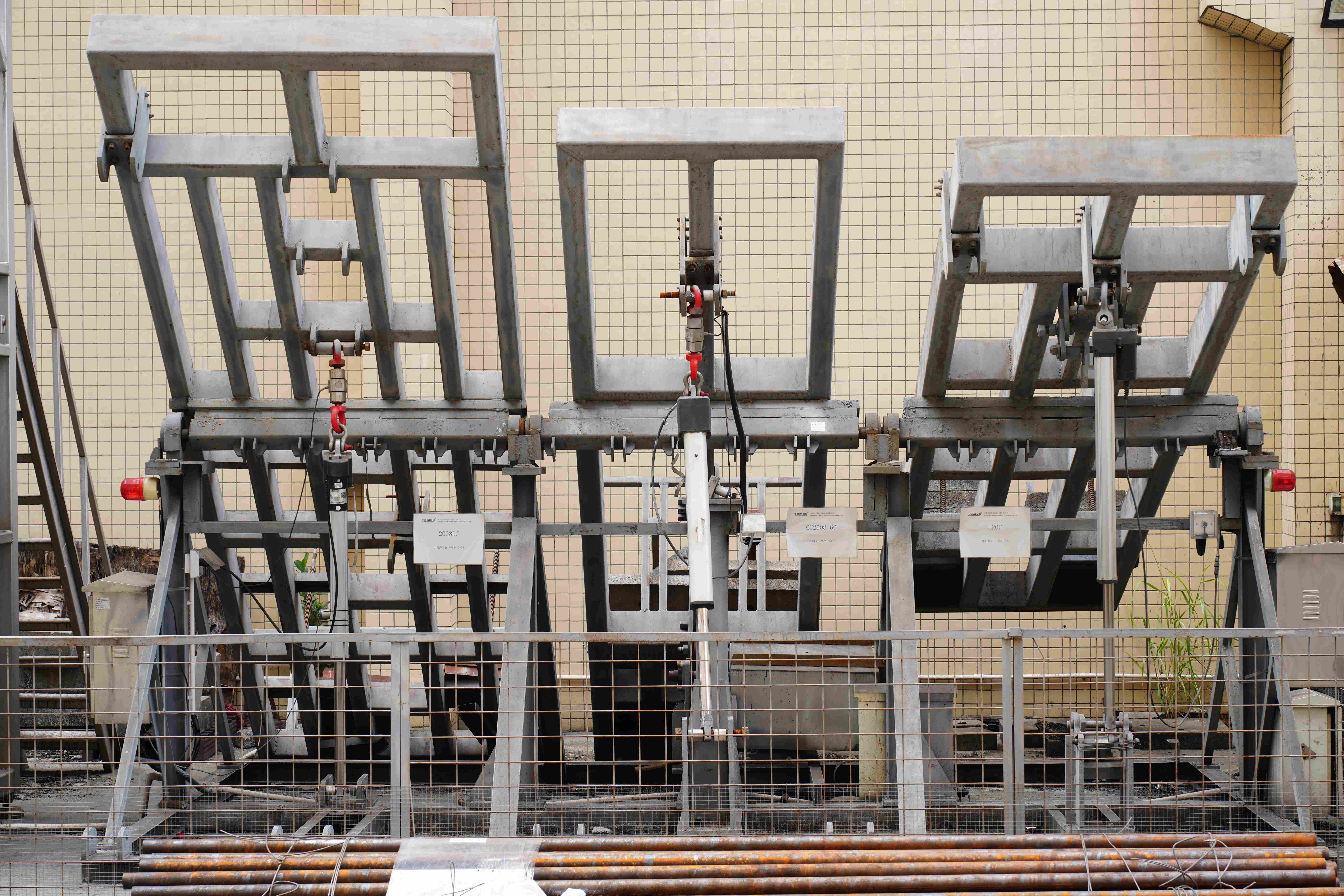

R&D & Testing
Load · IP · Durability · Performance
Find the Right Solar Tracker Linear Actuator
To recommend the right actuator for your solar tracking system, please provide the required load, stroke, installation dimensions, voltage, speed requirements and project quantity .
Not sure what information is needed? Read our Linear Actuator Selection Guide .
